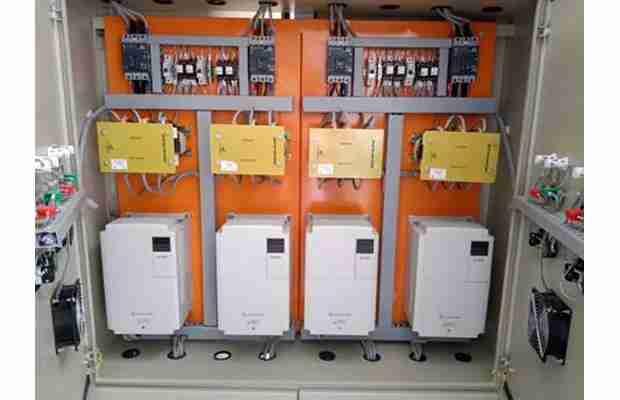

VFD Based Control Panel
The VFD Based Control Panel, also known as a Variable Frequency Drive (VFD) Panel, is engineered to precisely control the speed and torque of electric motors, optimizing performance and reducing energy consumption. Designed for demanding industrial applications such as drilling, pumping, and conveyor operations, our VFD panels ensure smooth start/stop functions, improved process control, and extended equipment life.
As a trusted manufacturer, we provide robust, reliable, and high-efficiency VFD control panels, built using top-grade components and compliant with international quality standards. Our panels are suitable for both indoor and outdoor installations, offering excellent protection against environmental factors due to their rugged construction and weather-resistant design.
Each panel is customizable to meet your unique industrial requirements, whether for standalone motor control or integrated systems.
Key Features
- Precise speed regulation for motors using advanced VFD technology
- Significant energy savings through optimized power usage
- Integrated protective relays, control switches, and monitoring systems
- Ideal for pumps, fans, compressors, conveyors, and HVAC systems
- User-friendly operation with optional remote access and automation
Technical Specifications
Construction & Design
- Modular / Non-compartmentalized / Semi or Fully Compartmentalized designs
- Fabricated with MS CRCA or Stainless Steel (SS) for durability
- Available for both indoor and outdoor installations
- Single or double front operation
- Future expansion provision included
- IP Protection options: IP42, IP52, IP54, IP55, IP65
- Built-in exhaust fans or louvers for effective heat dissipation
Surface Treatment & Painting
- 3-Tank / 7-Tank chemical pre-treatment process
- Final paint as per IS standards or custom client preferences
- Finish options: Synthetic Enamel, Epoxy Primer, or Powder Coating
Bus Bar System & Cable Management
- High-conductivity Aluminum or Copper busbars
- Top or bottom-mounted main busbar chamber
- Separate vertical dropper chamber for safety and ease of maintenance
- Busbar rated per continuous current and fault level withstand standards
- Temperature rise as per IS 8623 or client specifications
- SMC/DMC insulated busbar supports
- Top/bottom cable entry with detachable gland plates
Component Assembly & Wiring
- Premium components selected from approved vendors
- Optimized internal layout for efficient space utilization
- Internal wiring with 660/1100V grade PVC-insulated, stranded copper flexible wires
- All connections are crimped with high-quality lugs for reliability
Quality Assurance & Control
- Thorough inspection of panel dimensions and fabrication as per G.A. drawing
- Surface finish inspection for paint/powder coat uniformity
- Complete functional testing before dispatch
